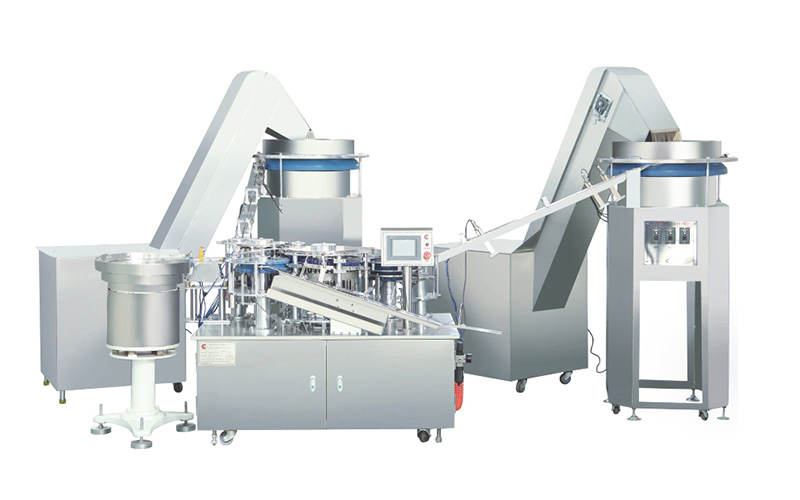

QZ-005 Three Parts Syringe Assembly Machine
Three Parts Syringe Assembly Machine This type of equipment can produce various types of syringes, including central-nozzle, ex-central nozzle, 3-part and 2-part syringes. It is controlled by calculatortouch screen, can detect without silicone spray and plugging needle, can stop automatically while lack of raw materials, thus , improve the production efficiency and quality greatly.
Technical Parameter
| Production SPEC | Producion Speed | Dimension | Weight | Power | Compressed air floww |
| 1ml | 180 pcs/min | 4200×3000×2100mm | 1500kg | AC220v/2.5KW | 0.3m³/min |
| 2-3ml | 200 pcs/min | ||||
| 5ml | 250 pcs/min | ||||
| 10ml | 250 pcs/min | ||||
| 20ml | 160 pcs/min | ||||
| 30ml | 150 pcs/min | ||||
| 50-60ml | 120 pcs/min |
Advantage
- Production speed quick
- low noise
- control operation simple
- appearance design
| Production SPEC | Rate | Size | Weight | Power souree&power | Compression air discharge |
| 1ml | 180/min | 4200*3000*2100 | 1500kg | AC200V/2.5KW | 0.3m³/min |
| 2-3ml | 200/min | 4200*3000*2100 | 1500kg | AC200V/2.5KW | 0.3m³/min |
| 5ml | 250/min | 4200*3000*2100 | 1500kg | AC200V/2.5KW | 0.3m³/min |
| 10ml | 160/min | 4200*3000*2100 | 1500kg | AC200V/2.5KW | 0.3m³/min |
| 30ml | 150/min | 4200*3000*2100 | 1500kg | AC200V/2.5KW | 0.3m³/min |
| 50ml | 120/min | 4200*3000*2100 | 1500kg | AC200V/2.5KW | 0.3m³/min |
